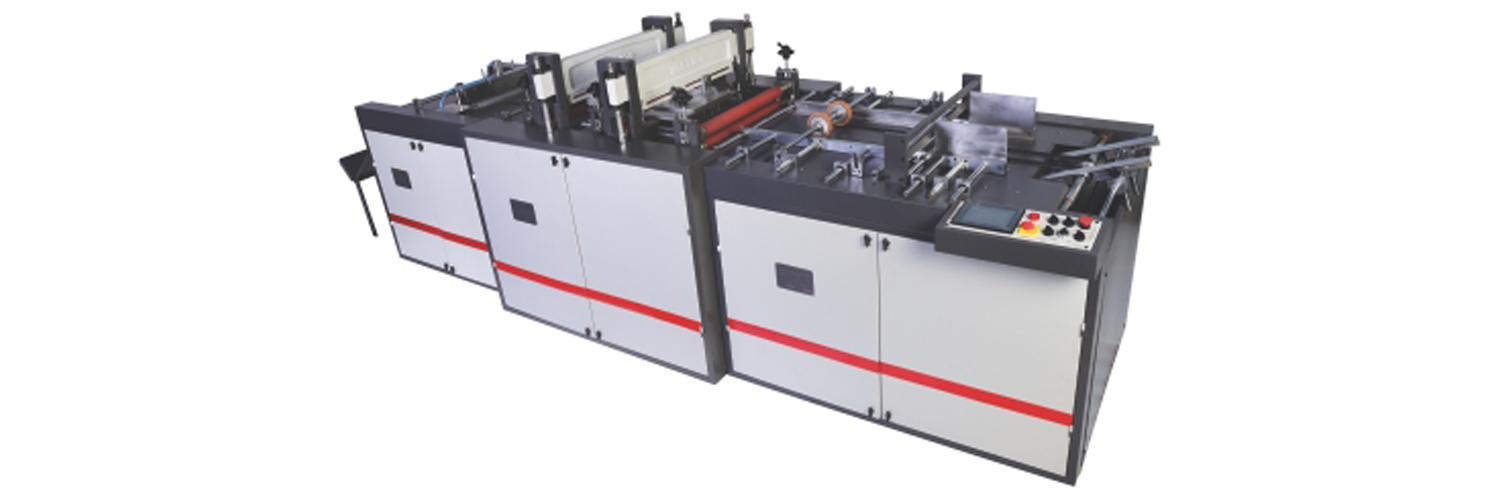

File Master MULTIMax - Auto


Technical specification

  Electricity Three Phase
  Power                                                  MOTOR 3.3K.V,440V.A.c,3Phase.
  Weight 1,500kgs
  Machine Size H-1400mm,W-1300mm,L-4700mm
  Machine Size with Wooden Box         H-1500mm,W-1400mm,L-4800mm
Model Name:MULTIMAX Auto
Electricity :Three Phase
Power:Motor 3.3 K.W., 440 V A.C., 3 Phase
Weight:1500 kgs
Machine Size: H – 1400 mm W – 1300 mm L – 4700 mm
Machine Size with wooden Box:H - 1400 mm W – 1400 mm L – 4800 mm

HIGH PRODUCTION FEATURES
Vallava developed many type of semi operation file master machine with the experience, now optimally positioned for the high speed and fast production file finishing segment and finally developed with Multi- Max auto file feeder with a dynamic PLC based programmed machine, No operator required for operating the machine. Operator only required for feeder and as a helper. The specialty of the machine is that File feeding, folding, punching and creasing all can be done at the same time.

Features

All accurate hard material dies with male/female punching creasing system comes with a longer shell life
Joint forming presser adjustment for constant file quality finishing
Heavy constructed Magnetic clutch brake machine
High volume and automatic production machine

Inter Changeable Long Life Dies
1)Dies For Box File Making:
a)All hole Punching Die for Online Machine (With Rado)
b)All hole Punching die for Online Machine (Without Rado)
2)Dies for Spring Files And Office file making :
a) All hole punching die for online machine
3)Dies for D- Ring File Making:
a)All hole punching die for online machine for D- Ring file.

Speciality
1)Can produce any type of paper and board files.
2)Operation by servo motor with gear box for 1 to 7 file creasing as per the file model.
3)Maximum 100 different types of files can be saved in the recipe for repeat operation.
4)LEVER LOCK (BOX) INDEX FILE-
*  PLC based automatic file feeder installed for systematic feeding cum dynamic double file detector         technology used in this machine
*  First station can punch round hole, Two rado and four hole punching for Box file clip fitting
*  Second station for Index file two creasing by distanced program. Also direct delivery top the delivery stand
* All other file also can be programmed and produced like ring binding file, c- round creasing box file, 700 gsm two creasing spring file of any size
5)COBRA FILE (Spring and Clip Office File)
*  First station will do two hole cum one reverse creasing where one half folding is required.
*  Second station will crease remaining 5 creasing as per the customer required distance, the distance     program can be set by operators at any time within few minute.
*  Third folding section can fold the file where reverse creased and finally, below two dies installed for punching final 4 holes for Cobra Spring files and 8 holes for office files
