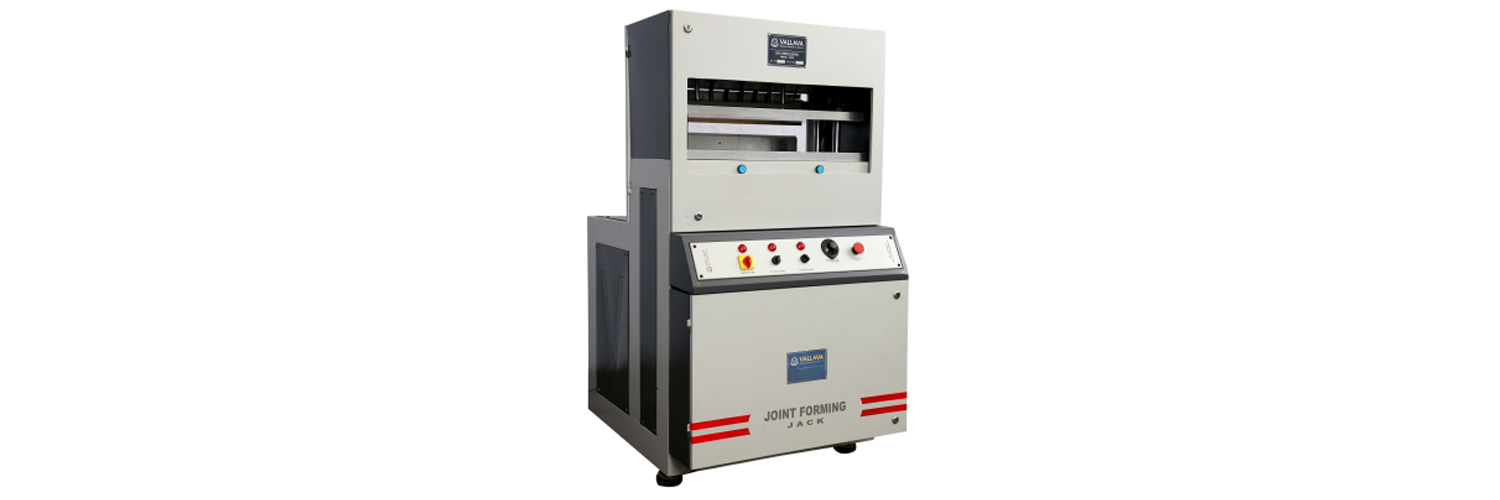

Hard case Book Joint Forming -JACK


Technical specification

Book width Up to 22"
Hydraulic Pressure 2 tons
Machine Dimensions L-620 x W-520 x H-1650
Machine with Wooden Box L-680 x W-810 x H-1995
Electrical Load/Moter Motor 0.746 KW./Heater-2k.W./3 Phase
Electricity Supply Total 1hp,3 Phase-A.C.Motor,2.75kw,440VAc

Rapid Hydraulic Book Press:

The Rapid Hydraulic 4 tons presser installed for hold the book properly, as well as book pressure finishing. It can be avoid the book spine slip at the time of Joint- forming.

Revolution Design :

Book – Back Loading is the right procedure to feed the book in the Joint forming machine. The operator with both his thumbs and fingers should press the book in book’s open side, so that the book spin would touch the centre board spin very tightly at the time of Joint forming also the powerful magnets always catch the book in proper gauge to press to joint-forming. It can be easily understood by an experienced hard case book binder, it is a simply user friendly design to produce proper hard case book Joint-forming of required quantity production.

Innovative System:

This is the proper machine to bind maximum pages book like bibles, Dictionaries, Directories etc. because of the back gauge hold the book very straight, the operator can be push and hold the book tightly with the centre board, the maximum pages book pages will not slip while the hydraulic press. Perfect tension creator knob installed for both upper & down heater system.

Valuable Options For Variety Of Operations Demands :

Main On/Off with red light indicator, up & down inching facility, Manual & Auto operation system, joint forming degree tuner, emergency OFF bush button, superb joint forming presser adjustment for constant book quality finishing.

Machine Built To Operator Friendly Usage:

  • Economic machine with compact and heavy duty construction for double high speed operation
  • Excellent registration system for book & joint forming
  • Long life Hydraulic Pneumatic used for rapid operation
  • Variable book pressure timing provided for best finishing of the book
  • Adjustable book spine back gauge for proper book engage
  • Adjustable Joint forming heating system, depending upon the Board Thickness
  • Variable heating setting provided for deferent type quality rapper used
  • Perfect tension creator knob installed for both upper & down heater system

Machine Users:

Publication Book Mfrs., Note Book Mfrs., Karishma & Product Album Mfrs., Bulk Stationery Mfrs., and Book Binding units, etc.

Products:

Diaries, Registers , Hard case Books, Note Books, Karishma Albums, Product Album etc.

Specifications:

  • Book spine width : Up to 22”
  • Book Thickness : up to 100mm
  • Rapid Hydraulic Pressure : 4 tons
  • Machine Dimensions : L 620 x W 520 x H 1650
  • Machine with Wooden Box : L680 x W810 x H1995
